Product Overview

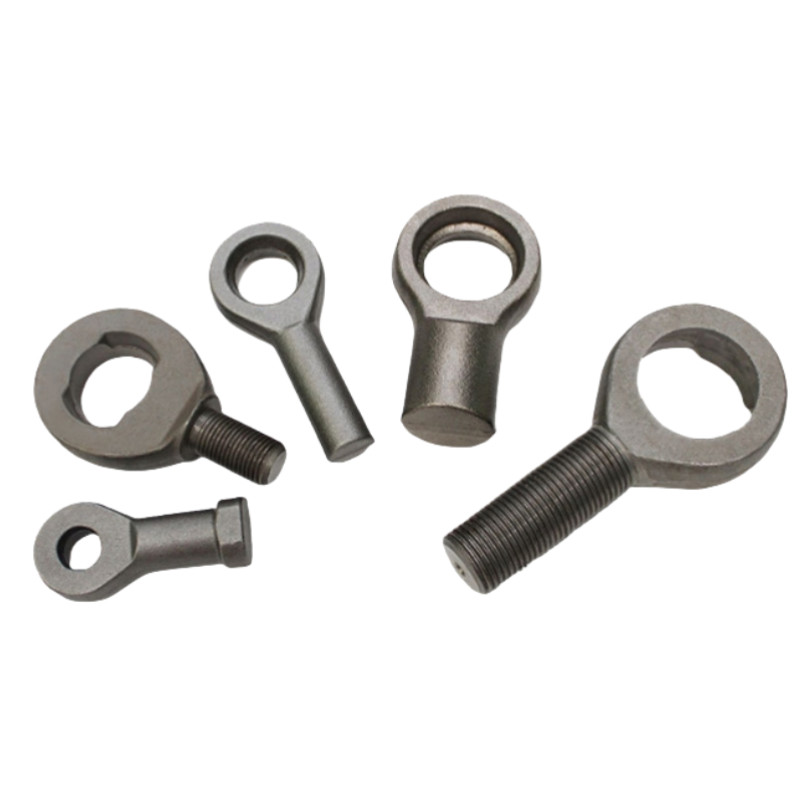

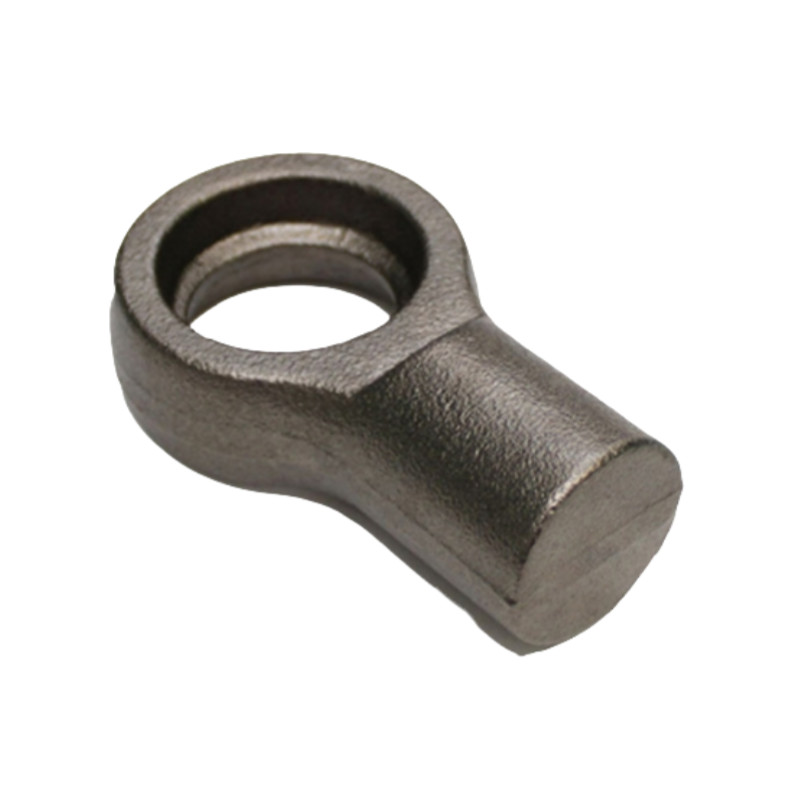

Our customized fisheye rod end bearings (threaded ball joints) are precision-forged components designed for high-load, high-misalignment applications in demanding mechanical systems. These forged rod ends provide superior strength, wear resistance, and smooth articulation, making them ideal for automotive, aerospace, industrial machinery, and hydraulic systems.

Key Features & Benefits

✔ High-Strength Forged Construction – Made from alloy steel, stainless steel, or titanium for exceptional durability and fatigue resistance.
✔ Precision Machining – Threaded shanks and ball sockets are CNC-machined to tight tolerances for smooth movement and secure fastening.
✔ Customizable Designs – Available in male/female threads, left/right-hand threads, and various bore sizes to match your application.
✔ Low-Friction Movement – PTFE-lined or self-lubricating options reduce wear and maintenance needs.
✔ Rigorous Quality Control – ISO 9001 & AS9100 certified, with hardness testing, dimensional inspection, and load testing.

Product parameters

Applications

• Automotive & Racing: Suspension linkages, steering systems

• Aerospace: Flight control systems, landing gear mechanisms

• Industrial Machinery: Hydraulic cylinders, robotic arms, conveyor systems

• Marine & Offshore: Steering linkages, hydraulic actuators

• Heavy Equipment: Excavators, loaders, agricultural machinery

Why Choose Our Forged Rod Ends?

 Superior Load Capacity – Forged construction handles higher dynamic & static loads vs. cast or machined alternatives.
 Long Service Life – Heat-treated & surface-finished for wear resistance.
 Flexible Customization – Modify thread size, ball diameter, material, and lubrication type.
 Fast Turnaround – Prototype to high-volume production with short lead times.

FAQ :

1. What materials are available for fisheye rod end bearings?

• Alloy Steel (4140, 4340, 8620) – High strength, heat-treated for durability

• Stainless Steel (304, 316, 17-4PH) – Corrosion-resistant for marine/chemical environments

• Titanium (Grade 5, Ti-6Al-4V) – Lightweight aerospace-grade option

• Aluminum (7075-T6) – Weight-sensitive applications (upon request)

2. What thread types and sizes do you support?

• Metric Threads: M6 to M36 (standard fine/coarse pitch)

• Inch Threads: #10 to 1½" UNF/UNC

• Custom Threads: ACME, trapezoidal, or left-hand threads available

3. What load capacities can your rod ends handle?

• Static Load: 5kN to 200kN (tested to 150% of rated capacity)

• Dynamic Load: 2.5kN to 100kN (fatigue-tested for 1M+ cycles)

4. Do you offer corrosion-resistant options?

• Stainless Steel 316/17-4PH

• Zinc/Nickel Plating

• PTFE/DLC Coatings

• Sealed Boot Kits (for dust/moisture protection)

5. Can I get custom bore or ball diameters?

• Bore Sizes: 6mm–50mm (±0.02mm tolerance)

• Ball Diameters: 10mm–80mm (±0.05mm)

6. What surface treatments are available?

• Standard: Zinc plating, black oxide

• Premium: Hard chrome, electroless nickel

• Specialty: PTFE coating (low friction), DLC (wear-resistant)

7. What’s the lead time for prototypes/production?

• Production: 4–6 weeks (500,000+ pcs/year capacity)

8. Can you match OEM specifications?

• CAD drawings (STEP, IGES, DWG)

• Sample parts (for dimensional analysis)

• Performance requirements (load, RPM, environment)
